| PNOZ s1 |
E-STOP, Safety gate |
c |
2 |
2 N/O, 1 SC |
24 VDC |
|
| PNOZ s2 |
E-STOP, Safety gate |
e |
3 |
3 N/O, 1 N/C, 1 SC |
24 VDC |
|
| PNOZ s3 |
E-STOP, safety gate, lightguard |
e |
3 |
2 N/O, 1 SC |
24 VDC |
|
| PNOZ s4 |
E-STOP, safety gate, lightguard |
e |
3 |
3 N/O, 1 N/C, 1 SC |
24 VDC, 48 ... 240 VAC/DC |
|
| PNOZ s4.1 |
E-STOP, safety gate, lightguard |
e |
3 |
3 N/O, 1 N/C, 1 SC |
24 VDC, 48 ... 240 VAC/DC |
|

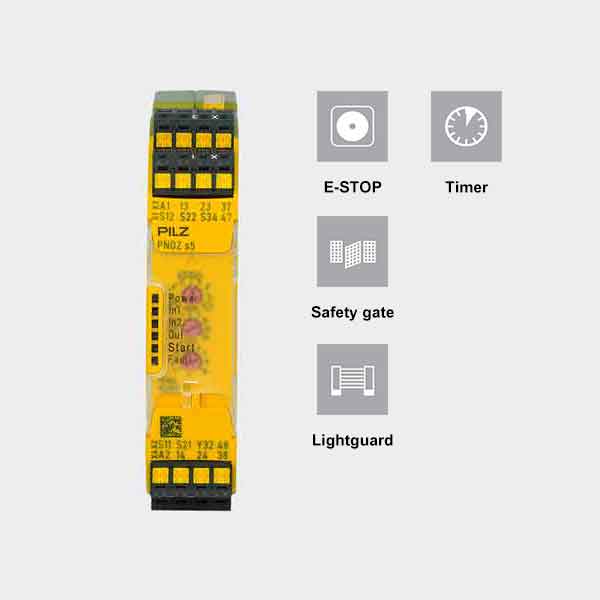

| PNOZ s5 |
E-STOP, safety gate, lightguard, timer |
e |
3 |
2 N/O, 2 N/O T, 1 SC |
24 VDC, 48 ... 240 VAC/DC |
|

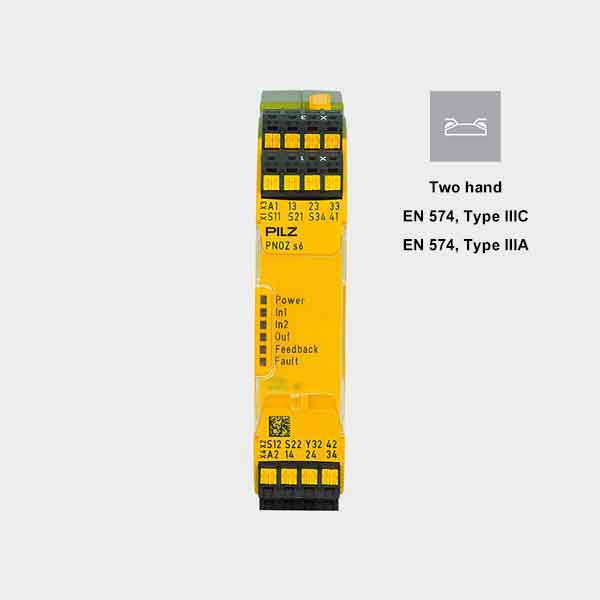

| PNOZ s6 |
EN 574, Type IIIC, Two-hand |
e |
3 |
3 N/O, 1 N/C, 1 SC |
24 VDC, 48 ... 240 VAC/DC |
|
| PNOZ s6.1 |
EN 574, Type IIIA, Two-hand |
c |
1 |
3 N/O, 1 N/C, 1 SC |
24 VDC, 48 ... 240 VAC/DC |
|
| PNOZ s7 |
Contact expansion |
e |
3 |
4 N/O, 1 N/C |
24 VDC |
|
| PNOZ s7.1 |
Contact expansion |
e |
3 |
3 N/O |
24 VDC |
|
| PNOZ s7.2 |
Contact expansion |
e |
3 |
4 N/O, 1 N/C |
24 VDC |
|
| PNOZ s9 |
Contact expansion, Timer |
e |
3 |
3 N/O T, 1 N/C |
24 VDC |
|
| PNOZ s10 |
Contact expansion |
e |
3 |
4 N/O, 1 N/C |
24 VDC |
|
| PNOZ s11 |
Contact expansion |
e |
3 |
8 N/O, 1 N/C |
24 VDC |
|
| PNOZ s22 |
Contact expansion for PNOZ s30
and PNOZ mm0.1p/mm0.2p |
e |
3 |
2x3 N/O, 2x1 N/C |
24 VDC |
|
| PNOZ s30 |
Speed monitor |
e |
3 |
2 N/O, 2 N/C, 4 SC |
24 VDC |
|
